><H1
><A
NAME="dev-guide"
>Chapter 3. Developer's guide</A
></H1
><P
>&#13;      <I
CLASS="emphasis"
>Information for developers (including the requirements and design docs)
	should go here.</I
>
    </P
><DIV
CLASS="sect1"
><H1
CLASS="sect1"
><A
NAME="uplevels-namespaces-uplevels-namespaces-arrays-and-pseudo-oop-in-tcl"
>3.1. Uplevels, Namespaces, Arrays, and pseudo-OOP in Tcl</A
></H1
><DIV
CLASS="TOC"
><DL
><DT
><B
>Table of Contents</B
></DT
><DT
>3.1.1. <A
HREF="dev-guide.html#uplevels-namespaces-overview"
>Overview</A
></DT
><DT
>3.1.2. <A
HREF="dev-guide.html#uplevels-namespaces-namespaces"
>Namespaces</A
></DT
><DD
><DL
><DT
>3.1.2.1. <A
HREF="dev-guide.html#uplevels-namespaces-qualifying"
>Qualifying</A
></DT
><DT
>3.1.2.2. <A
HREF="dev-guide.html#uplevels-namespaces-name-resolution"
>Name Resolution</A
></DT
><DT
>3.1.2.3. <A
HREF="dev-guide.html#uplevels-namespaces-namespace-variables"
>Namespace Variables</A
></DT
><DT
>3.1.2.4. <A
HREF="dev-guide.html#uplevels-namespaces-emulating-an-oop-like-approach-with-namespaces"
>Emulating an OOP-like approach with namespaces</A
></DT
><DT
>3.1.2.5. <A
HREF="dev-guide.html#uplevels-namespaces-mimicking-method-overloading-with-dispatch-procs"
>Mimicking method overloading with dispatch procs</A
></DT
></DL
></DD
><DT
>3.1.3. <A
HREF="dev-guide.html#uplevels-namespaces-arrays"
>Arrays</A
></DT
><DD
><DL
><DT
>3.1.3.1. <A
HREF="dev-guide.html#uplevels-namespaces-advanced-array-operations"
>Advanced array operations</A
></DT
><DT
>3.1.3.2. <A
HREF="dev-guide.html#uplevels-namespaces-arrays-are-not-first-class"
>Arrays are not first-class</A
></DT
></DL
></DD
><DT
>3.1.4. <A
HREF="dev-guide.html#uplevels-namespaces-upvar-and-uplevel"
>Upvar and Uplevel</A
></DT
><DD
><DL
><DT
>3.1.4.1. <A
HREF="dev-guide.html#uplevels-namespaces-using-upvar-and-arrays-to-store-objects"
>Using upvar and arrays to store objects</A
></DT
><DT
>3.1.4.2. <A
HREF="dev-guide.html#uplevels-namespaces-advanced-upvar-features"
>Advanced upvar features</A
></DT
><DT
>3.1.4.3. <A
HREF="dev-guide.html#uplevels-namespaces-uplevel"
>Uplevel</A
></DT
><DT
>3.1.4.4. <A
HREF="dev-guide.html#uplevels-namespaces-excessive-usage-of-upvaruplevel-considered-harmful"
>Excessive usage of upvar/uplevel considered harmful</A
></DT
></DL
></DD
><DT
>3.1.5. <A
HREF="dev-guide.html#uplevels-namespaces-conclusion"
>Conclusion</A
></DT
></DL
></DIV
><DIV
CLASS="sect2"
><H2
CLASS="sect2"
><A
NAME="uplevels-namespaces-overview"
>3.1.1. Overview</A
></H2
><P
>The Tcl language is fairly good at string manipulation, but it
      fails to provide advanced data structures and object-oriented
      features, which often make code a lot more manageable. Using the
      <TT
CLASS="computeroutput"
>uplevel</TT
> / <TT
CLASS="computeroutput"
>upvar</TT
>
      and <TT
CLASS="computeroutput"
>namespace</TT
> commands,
      in conjunction with the Tcl "array" data structure, it is possible
      to create code which mimics the most basic elements of OOP: methods
      and attributes. A large portion of ATS is built using this
      approach.</P
></DIV
><DIV
CLASS="sect2"
><H2
CLASS="sect2"
><A
NAME="uplevels-namespaces-namespaces"
>3.1.2. Namespaces</A
></H2
><P
>The <A
HREF="http://dev.scriptics.com/man/tcl8.3.2/TclCmd/namespace.htm"
TARGET="_top"
><TT
CLASS="computeroutput"
>namespace</TT
></A
>
      command is very similar to the namespace command in C. The command
      is used to create a new lexical scope; all variables and procs
      within the namespace cannot interfere with any variables and procs
      in any other namespace. The syntax to create a new namespace is as
      follows:</P
><PRE
CLASS="programlisting"
>
    <B
CLASS="phrase"
>namespace eval</B
> <I
CLASS="emphasis"
>namespace_name</I
> <B
CLASS="phrase"
>{</B
>
      <I
CLASS="emphasis"
>tcl_code</I
>
    <B
CLASS="phrase"
>}</B
>
        </PRE
><DIV
CLASS="sect3"
><H3
CLASS="sect3"
><A
NAME="uplevels-namespaces-qualifying"
>3.1.2.1. Qualifying</A
></H3
><P
>&#13;
	In order to access procedures defined inside a template, you must
	prefix them with the template name, as follows:

      </P
><PRE
CLASS="programlisting"
>
    <I
CLASS="emphasis"
>namespace_name</I
><B
CLASS="phrase"
>::</B
><I
CLASS="emphasis"
>proc_name</I
> <I
CLASS="emphasis"
>args</I
>

          </PRE
><P
>&#13;	This is known as <I
CLASS="emphasis"
>"qualifying"</I
> the procedure name.
      </P
><P
>For example, consider the following code:</P
><PRE
CLASS="programlisting"
>
    namespace eval apple {
      proc eat { name } {
        return "$name just ate an apple"
      }
    }

    namespace eval orange {
      proc eat { name } {
        return "An orange just ate $name !"
      }
    }
          </PRE
><P
>&#13;	The above code defines two namespaces, <TT
CLASS="computeroutput"
>apple</TT
> and
	<TT
CLASS="computeroutput"
>orange</TT
>. Each namespace contains a proc named <TT
CLASS="computeroutput"
>eat</TT
>,
	but the behavior of the procs is different. Here is the output
	produced when calling <TT
CLASS="computeroutput"
>eat</TT
> in tclsh:
      </P
><PRE
CLASS="programlisting"
>
    % apple::eat "Stas"
    Stas just ate an apple
    % orange::eat "Stas"
    An orange just ate Stas !
    %
          </PRE
><P
>Namespace procedures can also be defined outside the
	<TT
CLASS="computeroutput"
>namespace eval</TT
> block, as long as they are qualified. For
	example, the above code can be rewtitten as:</P
><PRE
CLASS="programlisting"
>
    namespace eval apple {}

    namespace eval orange {}

    proc apple::eat { name } {
      return "$name just ate an apple"
    }

    proc orange::eat { name } {
      return "An orange just ate $name !"
    }
          </PRE
><P
>Namespaces may also be nested, as shown in the example
	below:</P
><PRE
CLASS="programlisting"
>
    namespace eval apple {
      namespace eval core {}
      namespace eval meat {}
    }

    proc apple::core::eat {} {
      return "The core is pretty much inedible"
    }

    proc apple::meat::eat {} {
      return "Yummy"
    }
          </PRE
></DIV
><DIV
CLASS="sect3"
><H3
CLASS="sect3"
><A
NAME="uplevels-namespaces-name-resolution"
>3.1.2.2. Name Resolution</A
></H3
><P
>&#13;
	When a proc which is defined inside a namespace calls another proc,
	the other proc is first assumed to be in the current namespace. If
	the current namespace contains no such proc, the proc is then
	assumed to reside in the global namespace. However, if the function
	call is prepended with the <TT
CLASS="computeroutput"
>::</TT
> resolution operator, the
	global namespace will be searched directyl. For example, consider
	the code below:
      </P
><PRE
CLASS="programlisting"
>
    namespace eval apple {}

    namespace eval orange {}

    proc eat { name } {
      return "$name goes hungry today..."
    }

    proc apple::eat { name } {
      return "$name just ate an apple"
    }

    proc orange::eat { name } {
      return "An orange just ate $name !"
    }

    proc apple::test {} {
      set result ""
    # Line 20
      append result "[eat Stas] \n"
    # Line 22
      append result "[::eat Stas] \n"
    # Line 24
      append result "[::orange::eat Stas] \n"
      return $result
    }
          </PRE
><P
>&#13;	The output of <TT
CLASS="computeroutput"
>apple::test</TT
> is as follows:
      </P
><PRE
CLASS="programlisting"
>
    % apple::test
    Stas just ate an apple
    Stas goes hungry today...
    An orange just ate Stas !

    %
          </PRE
><P
>&#13;	In line 20, the procedure <TT
CLASS="computeroutput"
>eat</TT
> exists in the <TT
CLASS="computeroutput"
>apple</TT
>
	namespace, and since the current procedure (<TT
CLASS="computeroutput"
>test</TT
>) is in
	the same namespace, the <TT
CLASS="computeroutput"
>eat</TT
> procedure in the
	<TT
CLASS="computeroutput"
>apple</TT
> namespace is called. In line 22, the <TT
CLASS="computeroutput"
>eat</TT
>
	procedure is called in the global namespace. In line 24, the fully
	qualified <TT
CLASS="computeroutput"
>eat</TT
> procedure in the <TT
CLASS="computeroutput"
>orange</TT
> namespace
	is called.
      </P
></DIV
><DIV
CLASS="sect3"
><H3
CLASS="sect3"
><A
NAME="uplevels-namespaces-namespace-variables"
>3.1.2.3. Namespace Variables</A
></H3
><P
>In addition to functions, namespaces may contain variables.
	Namespace variables act similarly to global variables. A namespace
	variable is only visible inside its namespace; the variable is
	persistent for the duration of the request and visible only to the
	current Tcl interpreter. The syntax to declare a namespace variable
	is as follows:
      </P
><PRE
CLASS="programlisting"
>
    <B
CLASS="phrase"
>namespace eval</B
> <I
CLASS="emphasis"
>namespace_name</I
> <B
CLASS="phrase"
>{</B
>
      <B
CLASS="phrase"
>variable</B
> <I
CLASS="emphasis"
>variable_name</I
> <I
CLASS="emphasis"
>optional_initial_value</I
>
      <I
CLASS="emphasis"
>tcl_code</I
>
    <B
CLASS="phrase"
>}</B
>

          </PRE
><P
>&#13;	In order to access the variable, each proc within the namespace
	must declare the variable at the beginning of the procedure body:
      </P
><PRE
CLASS="programlisting"
>
    <B
CLASS="phrase"
>proc</B
> <I
CLASS="emphasis"
>namespace_name</I
><B
CLASS="phrase"
>::</B
><I
CLASS="emphasis"
>proc_name</I
> <B
CLASS="phrase"
>{</B
> <I
CLASS="emphasis"
>args</I
> <B
CLASS="phrase"
>} {</B
>
      <B
CLASS="phrase"
>variable</B
> <I
CLASS="emphasis"
>variable_name</I
>
      <I
CLASS="emphasis"
>proc_body</I
>
    <B
CLASS="phrase"
>}</B
>

          </PRE
><P
>&#13;	The following code demonstrates the usage of namespace variables:
      </P
><A
NAME="namespace_counter"
></A
><PRE
CLASS="programlisting"
>
    namespace eval apple {
      variable apple_count 0
    }

    proc apple::add_apple {} {
      variable apple_count
      incr apple_count
    }

    proc apple::eat { name } {
      variable apple_count
      if { $apple_count &#62; 0 } {
        incr apple_count -1
        return "$name just ate an apple"
      } else {
        return "Out of apples"
      }
    }
          </PRE
><P
>&#13;	The Tcl evaluation below demonstrates that the variable
	<TT
CLASS="computeroutput"
>apple_count</TT
> is persistent:
      </P
><PRE
CLASS="programlisting"
>
    % apple::eat "Stas"
    Out of apples
    % apple::add_apple
    1
    % apple::eat "Stas"
    Stas just ate an apple
    % apple::eat "Stas"
    Out of apples
    %
    </PRE
><P
>&#13;	A note of caution about namespace variables: the variables are
	persistent within the current Tcl interepreter, which may survive
	across requests. Therefore, the variables should always be
	initialized manually at the beginning of each request.
      </P
></DIV
><DIV
CLASS="sect3"
><H3
CLASS="sect3"
><A
NAME="uplevels-namespaces-emulating-an-oop-like-approach-with-namespaces"
>3.1.2.4. Emulating an OOP-like approach with namespaces</A
></H3
><P
>&#13;
	With a small stretch of imagination, one can pretend that a
	namespace is a <I
CLASS="emphasis"
>class</I
>, the namespace procs are
	<I
CLASS="emphasis"
>methods</I
>, and namespace variables are <I
CLASS="emphasis"
>static
	  attributes</I
>. For example, the apple counting example
	<A
HREF="dev-guide.html#namespace_counter"
>above</A
> implements a simple class, with two
	methods and a "private" static attribute (since there is no
	<TT
CLASS="computeroutput"
>apple::get_count</TT
> method).
      </P
></DIV
><DIV
CLASS="sect3"
><H3
CLASS="sect3"
><A
NAME="uplevels-namespaces-mimicking-method-overloading-with-dispatch-procs"
>3.1.2.5. Mimicking method overloading with dispatch procs</A
></H3
><P
>&#13;
	In real OOP, one class may extend (or <I
CLASS="emphasis"
>subclass</I
>) another
	(known as the <I
CLASS="emphasis"
>superclass</I
>), inheriting all of its attributes
	and methods. The subclass may then overload some of the
	superclass's methods, changing their behavior. Something similar
	may be accomplished in Tcl with the usage of a dispatch proc. The
	proc takes a class name and some arguments, and passes them to the
	appropriate method, as follows:
      </P
><PRE
CLASS="programlisting"
>
    <B
CLASS="phrase"
>proc</B
> <I
CLASS="emphasis"
>namespace_name</I
><B
CLASS="phrase"
>::</B
><I
CLASS="emphasis"
>method_name</I
> <B
CLASS="phrase"
>{</B
> <I
CLASS="emphasis"
>type arg1 arg2 ...</I
> <B
CLASS="phrase"
>} {
  if { [catch</B
> <I
CLASS="emphasis"
>type</I
><B
CLASS="phrase"
>::</B
><I
CLASS="emphasis"
>method_name</I
> <B
CLASS="phrase"
>$</B
><I
CLASS="emphasis"
>arg1</I
> <B
CLASS="phrase"
>$</B
><I
CLASS="emphasis"
>arg2</I
> <I
CLASS="emphasis"
>...</I
><B
CLASS="phrase"
>] } {</B
>
    # The specific method does not exist; perform some default action
      <B
CLASS="phrase"
>}
}</B
>

          </PRE
><P
>&#13;	The dispatch proc first checks if an overloaded method exists,
	using the <A
HREF="http://dev.scriptics.com/man/tcl8.3.2/TclCmd//info.htm#M20"
TARGET="_top"
>info
	  procs</A
> command. If the method does exist, the dispatch proc
	calls the method; otherwise, the dispatch proc may throw an error
	or perform some default action.

      </P
><P
>Dispatch procs can also be used to abstract the methods within
	one class, hiding its namespace-based implementation, as shown in
	the example below:</P
><PRE
CLASS="programlisting"
>
    namespace eval banana {}

    # Main dispatch procedure for the class
    proc banana { method_name args } {
      eval banana::$method_name $args
    }

    proc banana::peel {} {
      return "The banana is now peeled"
    }

    proc banana::eat { inches } {
      return "You bite off $inches inches from the banana"
    }
          </PRE
><P
>&#13;	This approach allows the code to mimic the behavior of many
	multi-purpose operators in Tcl (such as <TT
CLASS="computeroutput"
>string</TT
> or
	<TT
CLASS="computeroutput"
>info</TT
>), as shown below:
      </P
><PRE
CLASS="programlisting"
>
    % banana peel
    The banana is now peeled
    % banana eat 5
    You bite off 5 inches from the banana
    % banana foo
    invalid command name "banana::foo"
    %
    </PRE
><P
>&#13;	The facilities discussed above are sufficient for the
	implementation of any simple "class", but they lack an important
	feature: storing multiple non-static attributes (storing a distinct
	set of attribute values for each instance of the "class").
	<I
CLASS="emphasis"
>Arrays</I
> can be used to remove this deficiency.
      </P
></DIV
></DIV
><DIV
CLASS="sect2"
><H2
CLASS="sect2"
><A
NAME="uplevels-namespaces-arrays"
>3.1.3. Arrays</A
></H2
><P
>&#13;
      Tcl provides a data structure known as the <I
CLASS="emphasis"
>array</I
>, though in
      reality the data structure resembles a hash table more than a true
      array. Tcl arrays are very similar to <TT
CLASS="computeroutput"
>ns_set</TT
>s: just like
      <TT
CLASS="computeroutput"
>ns_set</TT
>s, arrays associate keys with values. Unlike the
      <TT
CLASS="computeroutput"
>ns_set</TT
>s, however, arrays are part of the Tcl interpreter
      and not the AOLServer, which makes them a lot faster. The syntax to
      manipulate arrays is as follows:

    </P
><PRE
CLASS="programlisting"
>
    # Set some key to a value
    <B
CLASS="phrase"
>set</B
> <I
CLASS="emphasis"
>array_name</I
><B
CLASS="phrase"
>(</B
><I
CLASS="emphasis"
>key_name</I
><B
CLASS="phrase"
>)</B
> <I
CLASS="emphasis"
>value</I
>
    # Retrieve the value of some key
    set result
     <B
CLASS="phrase"
>$</B
><I
CLASS="emphasis"
>array_name</I
><B
CLASS="phrase"
>(</B
><I
CLASS="emphasis"
>key_name</I
><B
CLASS="phrase"
>)</B
>
        </PRE
><P
>&#13;      If the array whose key is to be set does not exist, it is
      automatically created. However, if the array whose key is to be
      retrieved does not exist The <A
HREF="http://dev.scriptics.com/man/tcl8.3.2/TclCmd/info.htm#M11"
TARGET="_top"
><TT
CLASS="computeroutput"
>info
	  exists</TT
></A
> command can be used to determine if an array key
      exists before accessing it:
    </P
><PRE
CLASS="programlisting"
>
    <B
CLASS="phrase"
>if { [info exists</B
> <I
CLASS="emphasis"
>array_name</I
><B
CLASS="phrase"
>(</B
><I
CLASS="emphasis"
>key_name</I
><B
CLASS="phrase"
>)] } {</B
>
    # The key exists, so access it
    <B
CLASS="phrase"
>} else {</B
>
      # The key does not exist
    <B
CLASS="phrase"
>}</B
>

        </PRE
><P
>&#13;
      For example, the code below demonstrates some of the basic actions
      that can be performed on arrays:

    </P
><PRE
CLASS="programlisting"
>
    % set basket(apples) 1
    1
    % info exists basket(apples)
    1
    % info exists basket(oranges)
    0
    % info exists basket
    1
    % set basket(apples)
    1
    % incr basket(apples)
    2
    % set basket(apples)
    2
    %
        </PRE
><DIV
CLASS="sect3"
><H3
CLASS="sect3"
><A
NAME="uplevels-namespaces-advanced-array-operations"
>3.1.3.1. Advanced array operations</A
></H3
><P
>&#13;
	The <A
HREF="http://dev.scriptics.com/man/tcl8.3.2/TclCmd/array.htm"
TARGET="_top"
>array</A
>
	command can be used to manipulate Tcl arrays. Particularly, the
	<TT
CLASS="computeroutput"
>array get</TT
> and <TT
CLASS="computeroutput"
>array set</TT
> commands can be used to
	convert between arrays and lists. The <TT
CLASS="computeroutput"
>array get</TT
> command
	converts an array to a list with an even number of elements. The
	odd-numbered elements are the key names and the even-numbered
	elements are the key values, as shown in the example below:

      </P
><PRE
CLASS="programlisting"
>
    % set basket(apples) 1
    1
    % set basket(oranges) 5
    5
    % array get basket
    apples 1 oranges 5
    %
          </PRE
><P
>&#13;
	The <TT
CLASS="computeroutput"
>array set</TT
> command takes a list in the same format, and
	sets the keys of the specified array to their values in the list:

      </P
><PRE
CLASS="programlisting"
>
    % array set basket [list apples 3 oranges 4 ants 15]
    % set basket(apples)
    3
    % set basket(oranges)
    4
    % set basket(ants)
    15
    %
          </PRE
><P
>&#13;
	The <TT
CLASS="computeroutput"
>array</TT
> command has other useful operands, detailed in
	the <A
HREF="http://dev.scriptics.com/man/tcl8.3.2/TclCmd/array.htm"
TARGET="_top"
>official
	  man pages</A
>. In addition, ATS defines the following proc for
	dealing with arrays (all procs are in the <TT
CLASS="computeroutput"
>template::util</TT
>
	namespace):

      </P
><DIV
CLASS="informaltable"
><A
NAME="AEN1342"
></A
><TABLE
BORDER="1"
CLASS="CALSTABLE"
CELLPADDING="10"
><THEAD
><TR
><TH
ALIGN="CENTER"
VALIGN="MIDDLE"
>Proc</TH
><TH
ALIGN="CENTER"
VALIGN="MIDDLE"
>Effect</TH
><TH
ALIGN="CENTER"
VALIGN="MIDDLE"
>Example</TH
></TR
></THEAD
><TBODY
><TR
><TD
ALIGN="LEFT"
VALIGN="MIDDLE"
><TT
CLASS="computeroutput"
>array_to_vars { arrayname }</TT
></TD
><TD
ALIGN="LEFT"
VALIGN="MIDDLE"
>Sets local variables in the calling frame; set one variable for
		each key in the array. The value of the variable is the value
		associated with the key in the array. See the discussion of the
		<TT
CLASS="computeroutput"
>upvar</TT
> command below to see how this is accomplished.</TD
><TD
ALIGN="LEFT"
VALIGN="MIDDLE"
><TT
CLASS="computeroutput"
>template::util::array_to_vars my_array</TT
></TD
></TR
><TR
><TD
ALIGN="LEFT"
VALIGN="MIDDLE"
><TT
CLASS="computeroutput"
>vars_to_array { arrayname args }</TT
></TD
><TD
ALIGN="LEFT"
VALIGN="MIDDLE"
>The opposite of <TT
CLASS="computeroutput"
>array_to_vars</TT
>. Sets array keys to the
		values contained in the local variables whose names are supplied to
		the proc.</TD
><TD
ALIGN="LEFT"
VALIGN="MIDDLE"
>&#13;		<PRE
CLASS="programlisting"
>
    set var1 "foo"
    set var2 "bar"
    template::util::vars_to_array my_array var1 var2
    		</PRE
>
	      </TD
></TR
><TR
><TD
ALIGN="LEFT"
VALIGN="MIDDLE"
><TT
CLASS="computeroutput"
>proc list_to_array { values arrayname keys }</TT
></TD
><TD
ALIGN="LEFT"
VALIGN="MIDDLE"
>Takes a list of values and a list of keys, and sets the array
		keys to the values specified in the lists. The lists must have the
		same length.</TD
><TD
ALIGN="LEFT"
VALIGN="MIDDLE"
><TT
CLASS="computeroutput"
>template::util::list_to_array {1 15} my_array {apples
		  oranges}</TT
></TD
></TR
><TR
><TD
ALIGN="LEFT"
VALIGN="MIDDLE"
><TT
CLASS="computeroutput"
>list_of_lists_to_array { lists arrayname }</TT
></TD
><TD
ALIGN="LEFT"
VALIGN="MIDDLE"
>Takes a list of key-value pairs, in form <TT
CLASS="computeroutput"
>{{key1 value1}
		  {key2 value2} ...}</TT
> and sets the array contents
		accordingly.</TD
><TD
ALIGN="LEFT"
VALIGN="MIDDLE"
><TT
CLASS="computeroutput"
>template::util::list_of_lists_to_array {{apples 1} {oranges
		  2} my_array</TT
></TD
></TR
><TR
><TD
ALIGN="LEFT"
VALIGN="MIDDLE"
><TT
CLASS="computeroutput"
>list_to_lookup { values arrayname }</TT
></TD
><TD
ALIGN="LEFT"
VALIGN="MIDDLE"
>Converts a list of input values into an array which can be used
		as a sparse lookup bitmap. Each key in the array has a numeric
		value which signifies its position in the original list.</TD
><TD
ALIGN="LEFT"
VALIGN="MIDDLE"
><TT
CLASS="computeroutput"
>template::util::list_to_lookup {a b c} my_array</TT
></TD
></TR
></TBODY
></TABLE
></DIV
></DIV
><DIV
CLASS="sect3"
><H3
CLASS="sect3"
><A
NAME="uplevels-namespaces-arrays-are-not-first-class"
>3.1.3.2. Arrays are not first-class</A
></H3
><P
>&#13;
	Unlike <TT
CLASS="computeroutput"
>ns_set</TT
>s, however, arrays in Tcl are not
	"first-class". This means that they cannot be passed to procs as
	parameters, and cannot be returned from procs as return values. For
	example, assuming that an array variable called <TT
CLASS="computeroutput"
>my_array</TT
>
	exists, all of the following calls are illegal:

      </P
><UL
><LI
><P
CLASS="listitem"
>&#13;	    <TT
CLASS="computeroutput"
>set other_array
	      $my_array</TT
>	  </P
></LI
><LI
><P
CLASS="listitem"
>&#13;	    <TT
CLASS="computeroutput"
>set x [some_proc
	      $my_array]</TT
>	  </P
></LI
><LI
><P
CLASS="listitem"
>&#13;	    <TT
CLASS="computeroutput"
>set my_array [some_proc]</TT
>	  </P
></LI
></UL
><P
>Note that the above restrictions apply only to the arrays
	themselves; array keys are no different from ordinary variables in
	Tcl, and all of the following calls are legal:</P
><UL
><LI
><P
CLASS="listitem"
>&#13;	    <TT
CLASS="computeroutput"
>set var $my_array(foo)</TT
>	  </P
></LI
><LI
><P
CLASS="listitem"
>&#13;	    <TT
CLASS="computeroutput"
>set x [some_proc
	      $my_array(foo)]</TT
>	  </P
></LI
><LI
><P
CLASS="listitem"
>&#13;	    <TT
CLASS="computeroutput"
>set my_array(foo)
	      [some_proc]</TT
>	  </P
></LI
></UL
><P
>&#13;
	Of course, arrays can still be passed between procs using the
	<TT
CLASS="computeroutput"
>array get</TT
> and <TT
CLASS="computeroutput"
>array set</TT
> commands, but this
	approach is very inefficient. Instead, the <TT
CLASS="computeroutput"
>upvar</TT
> command
	can be used to pass the arrays by reference.

      </P
></DIV
></DIV
><DIV
CLASS="sect2"
><H2
CLASS="sect2"
><A
NAME="uplevels-namespaces-upvar-and-uplevel"
>3.1.4. Upvar and Uplevel</A
></H2
><P
>The <A
HREF="http://dev.scriptics.com/man/tcl8.3.2/TclCmd/upvar.htm"
TARGET="_top"
><TT
CLASS="computeroutput"
>upvar</TT
></A
>
      command can be used to pass variables by reference. The syntax for
      upvar is:
    </P
><PRE
CLASS="programlisting"
>
    <B
CLASS="phrase"
>upvar</B
> <I
CLASS="emphasis"
>optional_level upper_variable1 local_variable1 upper_variable2 local_variable2 ...</I
>
        </PRE
><P
>&#13;      The upvar command makes a local variable point to the same location
      as a variable in the calling frame (note that a namespace also
      counts as a frame). For example, consider the following code:
    </P
><PRE
CLASS="programlisting"
>
    proc double {} {
      upvar the_var x
      set x [expr $x * 2]
    }

        </PRE
><P
>&#13;      The <TT
CLASS="computeroutput"
>double</TT
> proc associates a local variable called
      <TT
CLASS="computeroutput"
>x</TT
> with the variable in the calling frame called
      <TT
CLASS="computeroutput"
>the_var</TT
>, and then modifies the value of that variable. The
      results of calling the proc are shown below:
    </P
><PRE
CLASS="programlisting"
>
    % set the_var 3
    3
    % double
    6
    % set the_var
    6
    %
        </PRE
><P
>&#13;      As with any Tcl command, the parameters to <TT
CLASS="computeroutput"
>uplevel</TT
> need
      not be literals. For example, the classic "swap" procedure may be
      implemented in Tcl as follows:
    </P
><PRE
CLASS="programlisting"
>
    proc swap { reference1 reference2 } {
      upvar $reference1 a $reference2 b
      set temp $a
      set a $b
      set b $temp
    }
        </PRE
><P
>&#13;      The <TT
CLASS="computeroutput"
>swap</TT
> procedure looks up two variables in the calling
      frame and swaps their contents, as demonstrated below:
    </P
><PRE
CLASS="programlisting"
>
    % set x 3
    3
    % set y 5
    5
    % swap x y
    3
    % set x
    5
    % set y
    3
    %
        </PRE
><DIV
CLASS="sect3"
><H3
CLASS="sect3"
><A
NAME="uplevels-namespaces-using-upvar-and-arrays-to-store-objects"
>3.1.4.1. Using upvar and arrays to store objects</A
></H3
><P
>Arrays may be passed to procs using the upvar statement. Since Tcl
	arrays are essentially hash tables, they are ideal for storing
	object attributes. Consider the following code:
      </P
><A
NAME="oop_example"
></A
><PRE
CLASS="programlisting"
>
    ######## A full-fledged Tcl "class" ##########

    namespace eval basket {}

    # Create a new fruit basket
    proc basket::create { basket_ref } {
      upvar $basket_ref basket
      set basket(apples) 0
      set basket(oranges) 0
    }

    # Add apples to the basket
    proc basket::add_apples { basket_ref count } {
      upvar $basket_ref basket
      incr basket(apples) $count
      # An orange gets squished
      if { $basket(oranges) &#62; 0 } {
        incr basket(oranges) -1
      }
      return $basket(apples)
    }

    # Add oranges to the basket
    proc basket::add_oranges { basket_ref count } {
      upvar $basket_ref basket
      incr basket(oranges) $count
      return $basket(oranges)
    }

    # Eat the juiciest fruit
    proc basket::eat_fruit { basket_ref } {
      upvar $basket_ref basket
      if { $basket(oranges) &#62; $basket(apples) } {
        incr basket(oranges) -1
        return "Orange"
      } elseif { $basket(apples) &#62; 0 } {
        incr basket(apples) -1
        return "Apple"
      } else {
        error "The basket is empty"
      }
    }

    # Dispatch proc for the basket class
    proc basket { method_name basket_ref args } {
      upvar $basket_ref basket
      eval basket::$method_name basket $args
    }
          </PRE
><P
>The above code creates a very simple "class" which represents a
	fruit basket. The class has two "attributes", <TT
CLASS="computeroutput"
>apples</TT
> and
	<TT
CLASS="computeroutput"
>oranges</TT
>. The class also has two "methods" which add apples
	or oranges to the basket, a method which removes a fruit from the
	basket, and a constructor method (<TT
CLASS="computeroutput"
>basket::create</TT
>). The
	attributes are maintained in an array, and the array reference is
	passed to each method as the first argument (similarly to how the
	"this" pointer is passed in C++ and Java).</P
><P
>&#13;	The Tcl session shown below instantiates two <TT
CLASS="computeroutput"
>basket</TT
>
	objects and performs some operations on them:
      </P
><PRE
CLASS="programlisting"
>
    % basket create gift
    0
    % basket create stas
    0
    % basket add_apples gift 1
    1
    % basket add_oranges stas 1
    1
    % basket add_apples gift 1
    2
    % basket eat_fruit stas
    Orange
    % basket eat_fruit stas
    The basket is empty
    % basket eat_fruit gift
    Apple
    % basket eat_fruit gift
    Apple
    % basket eat_fruit gift
    The basket is empty
    %
          </PRE
><P
>&#13;	A large portion of the ATS uses the approach demonstrated above; in
	particular, the "form", "element" and "request" pseudo-classes are
	implemented in this way.
      </P
></DIV
><DIV
CLASS="sect3"
><H3
CLASS="sect3"
><A
NAME="uplevels-namespaces-advanced-upvar-features"
>3.1.4.2. Advanced upvar features</A
></H3
><P
>&#13;

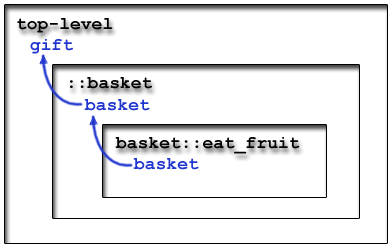

	Note that the <TT
CLASS="computeroutput"
>basket</TT
> dispatch proc above uses upvar to
	bind a local variable <TT
CLASS="computeroutput"
>basket</TT
> to the array which holds the
	basket attributes in the calling frame. It then gives
	"<TT
CLASS="computeroutput"
>basket</TT
>" as the reference to one of the basket class
	methods:
      </P
><DIV
CLASS="mediaobject"
><P
><IMG
SRC="images/uplevel01.gif"
ALT="Upvar illustration 1"
></IMG
></P
></DIV
><P

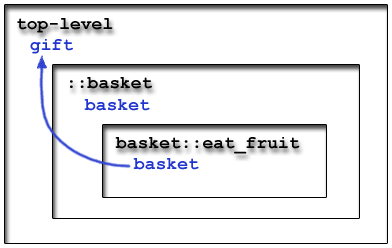

>However, the <TT
CLASS="computeroutput"
>basket</TT
> reference
	in the <TT
CLASS="computeroutput"
>::basket</TT
>
	proc is not useful; it is merely used to pass the reference down to
	the <TT
CLASS="computeroutput"
>basket::eat_fruit</TT
> proc.
	By using the <I
CLASS="emphasis"
>level</I
>
	parameter to <TT
CLASS="computeroutput"
>upvar</TT
>, this extra reference can be
	eliminated:
      </P
><DIV
CLASS="mediaobject"
><P
><IMG
SRC="images/uplevel02.gif"
ALT="Upvar illustration 2"
></IMG
></P
></DIV
><P
>The Tcl interpreter will bind the local variable to a variable in
	the <I
CLASS="emphasis"
>level</I
>th calling frame, relative to the current frame. By
	default, the level is assumed to be 1 (one), and the local variable
	is bound to a variable in the caller of the current proc. If the
	level is 2, the local variable will be bound to the variable in the
	caller's caller; and so on. Therefore, the <TT
CLASS="computeroutput"
>basket</TT
> dispatch
	methods may be rewritten as follows (changes from the <A
HREF="dev-guide.html#oop_example"
>previous</A
>
	example are shown in <B
CLASS="phrase"
>bold</B
>):
      </P
><PRE
CLASS="programlisting"
>
    namespace eval basket {}

    # Create a new fruit basket
    proc basket::create { basket_ref } {
      <B
CLASS="phrase"
>upvar 2 $basket_ref basket</B
>
      set basket(apples) 0
      set basket(oranges) 0
    }

    # Add apples to the basket
    proc basket::add_apples { basket_ref count } {
      <B
CLASS="phrase"
>upvar 2 $basket_ref basket</B
>
      incr basket(apples) $count
      # An orange gets squished
      if { $basket(oranges) &#62; 0 } {
        incr basket(oranges) -1
      }
      return $basket(apples)
    }

    # Add oranges to the basket
    proc basket::add_oranges { basket_ref count } {
      <B
CLASS="phrase"
>upvar 2 $basket_ref basket</B
>
      incr basket(oranges) $count
      return $basket(oranges)
    }

    # Eat the juiciest fruit
    proc basket::eat_fruit { basket_ref } {
      <B
CLASS="phrase"
>upvar 2 $basket_ref basket</B
>
      if { $basket(oranges) &#62; $basket(apples) } {
        incr basket(oranges) -1
        return "Orange"
      } elseif { $basket(apples) &#62; 0 } {
        incr basket(apples) -1
        return "Apple"
      } else {
        error "The basket is empty"
      }
    }

    # Dispatch proc for the basket class
    proc basket { method_name basket_ref args } {
      <B
CLASS="phrase"
># Code removed ---&#62; upvar $basket_ref basket</B
>
      <B
CLASS="phrase"
>eval basket::$method_name $basket_ref $args</B
>
    }
          </PRE
><P
>&#13;	The <I
CLASS="emphasis"
>level</I
> parameter may also be 0 (zero). In this case, a
	local variable may be "aliased" under a different name, as is shown
	below:
      </P
><PRE
CLASS="programlisting"
>
    % set x 5
    5
    % upvar 0 x y
    % set y
    5
    % set y 6
    6
    % set x
    6
    %
          </PRE
><P
>In addition to relative levels, <TT
CLASS="computeroutput"
>upvar</TT
> may refer to an
	absolute level. This can be accomplished by prepending the level
	with a pound sign (<TT
CLASS="computeroutput"
>#</TT
>), despite the fact that the pound
	sign is normally reserved for comments:</P
><PRE
CLASS="programlisting"
>
    <B
CLASS="phrase"
>upvar #</B
><I
CLASS="emphasis"
>level upper_variable1 local_variable1 upper_variable2 local_variable2 ...</I
>
          </PRE
><P
>&#13;	The top level (the level which contains all the global variables)
	is #0, the next level below that is #1, and so on. The absolute
	level is useful when there are many (possibly recursive) procs that
	wish to refer to the same object (as opposed to passing the object
	between the procs by value). The ATS form API
	(<TT
CLASS="computeroutput"
>form create</TT
>,
	<TT
CLASS="computeroutput"
>element create</TT
> and so on) uses this
	technique.
      </P
></DIV
><DIV
CLASS="sect3"
><H3
CLASS="sect3"
><A
NAME="uplevels-namespaces-uplevel"
>3.1.4.3. Uplevel</A
></H3
><P
>&#13;
	In addition to binding variables in the calling frame via the
	<TT
CLASS="computeroutput"
>upvar</TT
> command, Tcl provides the capability to execute code
	in the calling frame via the <A
HREF="http://dev.scriptics.com/man/tcl8.3.2/TclCmd/uplevel.htm"
TARGET="_top"
><TT
CLASS="computeroutput"
>uplevel</TT
></A
>
	command. The syntax for <TT
CLASS="computeroutput"
>uplevel</TT
> is as follows:

      </P
><PRE
CLASS="programlisting"
>
    <B
CLASS="phrase"
>uplevel</B
> <I
CLASS="emphasis"
>optional_level code</I
>
          </PRE
><P
>&#13;
	The level is handled identically to the level in the <TT
CLASS="computeroutput"
>upvar</TT
>
	command, and the <I
CLASS="emphasis"
>code</I
> parameter will be executed as if it
	was in the specified frame. For example, consider the following
	code:

      </P
><PRE
CLASS="programlisting"
>
    proc create_gift_basket {} {
      uplevel {
        basket create gift_basket
        basket add_apples gift_basket 2
        basket add_oranges gift_basket 3
      }
    }
          </PRE
><P
>&#13;
	This proc creates a fruit basket and fills it with some apples and
	oranges:

      </P
><PRE
CLASS="programlisting"
>
    % create_gift_basket
    3
    % basket eat_fruit gift_basket
    Orange
    % basket eat_fruit gift_basket
    Apple
    % basket eat_fruit gift_basket
    Orange
    % basket eat_fruit gift_basket
    Apple
    % basket eat_fruit gift_basket
    Orange
    % basket eat_fruit gift_basket
    The basket is empty
    %
          </PRE
><P
>&#13;
	Note that, in Tcl, code is stored as text. Therefore, using
	<TT
CLASS="computeroutput"
>uplevel</TT
> it is possible to create procs that take a piece
	of code as a parameter (similar to the lambda-functions in LISP),
	as is shown below:
      </P
><PRE
CLASS="programlisting"
>
    proc list_map { the_list code } {
      foreach element $the_list {
        upvar list_item item
        set item $element
        uplevel $code
      }
    }
          </PRE
><P
>&#13;
	The <TT
CLASS="computeroutput"
>list_map</TT
> proc takes a list and some executable code as
	parameters. It then traverses the list element-by-element. For each
	element in the list, the proc uses <TT
CLASS="computeroutput"
>upvar</TT
> to create a
	variable in the calling frame called "<TT
CLASS="computeroutput"
>list_item</TT
>". The
	procedure then executes the arbitrary code; the code runs in the
	calling frame and may refer to any variables there, including
	<TT
CLASS="computeroutput"
>list_item</TT
>, as in this example:

      </P
><PRE
CLASS="programlisting"
>
    % set a [list 1 2 3 4]
    1 2 3 4
    % set factor 3
    3
    % set b [list]
    % list_map $a {lappend b [expr $list_item * $factor]}
    % set b
    3 6 9 12
    %
          </PRE
></DIV
><DIV
CLASS="sect3"
><H3
CLASS="sect3"
><A
NAME="uplevels-namespaces-excessive-usage-of-upvaruplevel-considered-harmful"
>3.1.4.4. Excessive usage of upvar/uplevel considered harmful</A
></H3
><P
>&#13;
	Despite their advantages, uplevel and upvar should be used with
	caution. Excessive usage of upvar (especially upvar to absolute
	levels) may render code unreadable, since it is difficult to trace
	all the variable references back to their source through the
	various function calls. In addition, <TT
CLASS="computeroutput"
>upvar</TT
> paves the way
	for dreaded "pointer aliasing" bugs. Using <TT
CLASS="computeroutput"
>upvar</TT
>, it
	becomes possible for two unrelated procedures to accidentally
	reference the same variable in the calling frame, and thus corrupt
	the data. Combined with namespace variables, <TT
CLASS="computeroutput"
>upvar</TT
> can do
	a lot of damage.

      </P
><P
>The <TT
CLASS="computeroutput"
>uplevel</TT
> command has the potential to introduce even
	more subtle bugs, since it can overwrite arbitrary variables in the
	calling frame. For example, consider the following code:</P
><P
></P
><PRE
CLASS="programlisting"
>
    proc clobber {} {
      uplevel {
        for { set i 1 } { $i &#60;= 3 } { incr i } {
          # Do something
        }
      }
    }
          </PRE
><P
>&#13;	The <TT
CLASS="computeroutput"
>clobber</TT
> proc will work fine as long as there is no
	variable called "<TT
CLASS="computeroutput"
>i</TT
>" in the calling frame. If that variable
	exists, the proc will overwrite the variable's value. Since
	variables such as "<TT
CLASS="computeroutput"
>i</TT
>", "<TT
CLASS="computeroutput"
>j</TT
>", etc. are often used
	in loops, the behavior of <TT
CLASS="computeroutput"
>clobber</TT
> may become completely
	unpredictable.

      </P
><P
>In addition, <TT
CLASS="computeroutput"
>upvar</TT
> and <TT
CLASS="computeroutput"
>uplevel</TT
> may present a
	security risk. The risk is even greater than the risk posed by
	<TT
CLASS="computeroutput"
>eval</TT
>, since <TT
CLASS="computeroutput"
>eval</TT
> can only execute code in the
	current frame, and <TT
CLASS="computeroutput"
>upvar</TT
> / <TT
CLASS="computeroutput"
>uplevel</TT
> may execute
	code in <I
CLASS="emphasis"
>any</I
> frame.</P
></DIV
></DIV
><DIV
CLASS="sect2"
><H2
CLASS="sect2"
><A
NAME="uplevels-namespaces-conclusion"
>3.1.5. Conclusion</A
></H2
><P
>&#13;
      Namespaces, upvars and arrays may be used to simulate OOP behavior
      in Tcl. This approach is widely used throughout ATS in order to
      make the code more manageable and easily extensible. However, this
      approach (and especially upvar/uplevel commands) should be used
      with caution since it can decrease the readability of the code and
      introduce hidden bugs.
    </P
></DIV
></DIV
></DIV
><DIV
CLASS="NAVFOOTER"
><HR
SIZE="1"
NOSHADE="NOSHADE"
ALIGN="LEFT"
WIDTH="100%"><TABLE
WIDTH="100%"
BORDER="0"
CELLPADDING="0"
CELLSPACING="0"
><TR
><TD
WIDTH="33%"
ALIGN="left"
VALIGN="top"
><A
HREF="setup-administration.html"
>Prev</A
></TD
><TD
WIDTH="34%"
ALIGN="center"
VALIGN="top"
><A
HREF="index.html"
>Home</A
></TD
><TD
WIDTH="33%"
ALIGN="right"
VALIGN="top"
><A
HREF="custom-interface.html"
>Next</A
></TD
></TR
><TR
><TD
WIDTH="33%"
ALIGN="left"
VALIGN="top"
>Setup and Administration</TD
><TD
WIDTH="34%"
ALIGN="center"
VALIGN="top"
>&nbsp;</TD
><TD
WIDTH="33%"
ALIGN="right"
VALIGN="top"
>Customizing Item Information Pages and Data Entry Forms</TD
></TR
></TABLE
></DIV
></BODY
></HTML
>
